Component overview - fuel pump
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Another pump variant with sucking jet pump is available for model year 2018 .
- This is backward compatible .

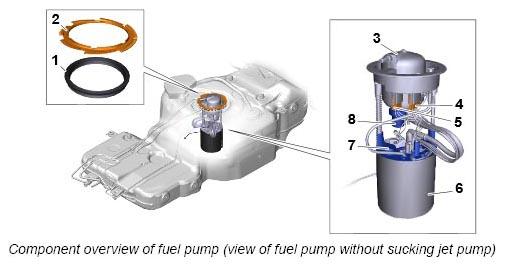

Overview of fuel pump (view of fuel pump without sucking jet pump):
| 1 | Seal/replace |
| 2 | Fuel pump lock → Tightening torque: 110 Nm (81.5 ft lb.) |
| 3 | Fuel filter |
| 4 | Electric plug connection for fuel pump |
| 5 | Electric plug connection for fuel level sender |
| 6 | Fuel pump |
| 7 | Fuel level sender |
| 8 | Pressure regulator |

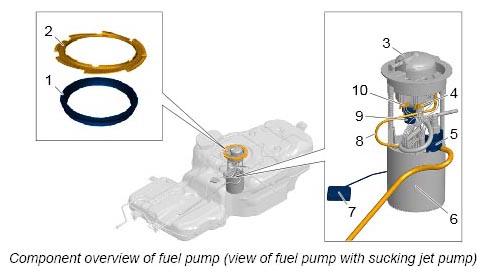

Overview of fuel pump (view of fuel pump with sucking jet pump and version with auxiliary heater):
| 1 | Seal/replace |
| 2 | Fuel pump lock → Tightening torque: 110 Nm (81.5 ft lb.) |
| 3 | Fuel filter |
| 4 | Electric plug connection for fuel pump |
| 5 | Sucking jet pump with line |
| 6 | Fuel pump |
| 7 | Fuel level sender |
| 8 | Line for pump with auxiliary heater |
| 9 | Pressure regulator |
| 10 | Electric plug connection for fuel level sender |
