Test tool setup
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

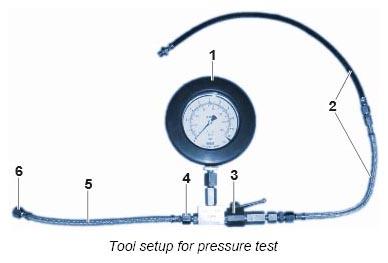

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Test equipment - pressure gauge (without stopcock) K-Jetronic pressure tester V.A.G. 1318 WE 1291 |
| 2 |
Connecting line connecting line 9705/3
(both lines) => Connection to |
| 3 |
Adapter 1318/15 |
| 4 |
Adapter 1318/23 |
| 5 |
Connecting line connecting lines P378c |
| 6 |
Adapter 1318/12 => Connection to line on engine side |

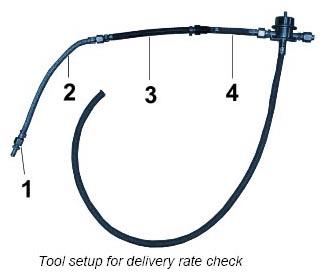

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Adapter 1318/12 |
| 2 |
Connecting line connecting lines P378c |
| 3 |
Connecting line 1318/17 |
| 4 |
Pressure reducer measuring adapter 9705 |
