Removing fine fuel strainer
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
→ Wear personal protective gear.
→ Ventilate the work area well.
→ Never ingest or inhale.
→ Read specific information on the Hazard Sheet.
→ Do not smoke, eat or drink in the work area.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.

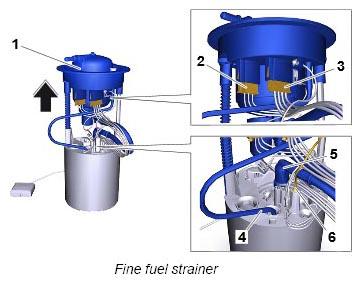

- Remove fine fuel strainer -1 -
.
- 1.1. Disconnect electric plug connection -2- and -3- .
- 1.2. Disconnect fuel line -5- .
- 1.3. Disconnect auxiliary heater line -4- .
- 1.4. Unclip Cayey holder -6- from retaining device using a pliers.
- 1.5. Remove fine fuel strainer -1- from the fuel pump in -direction of arrow- .
- 1.6. Place fine fuel strainer -1-
on a clean surface.
