Installing fine fuel strainer

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin

→ Wear personal protective gear.

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

WARNING: Highly inflammable or explosive materials
Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

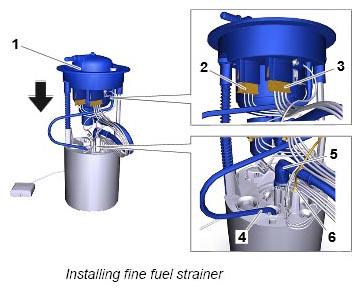

Install fine fuel strainer -1- .

1.1. Install fine fuel strainer -1- in the fuel pump in -direction of arrow- .
1.2. Clip Cayey holder -6- into retaining device.
1.3. Guide auxiliary heater line -4- into the guide.
1.4. Clip in fuel line -5- .

1.5. Connect electric plug connection -2- and -3- .
