Removing carbon canister

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

  1. Remove carbon canister.

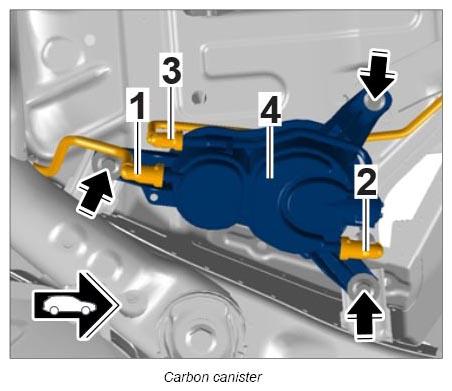

    1. 1.1. Release and disconnect vent line -1-  , air line -2-  and line connection for tank ventilation -3-  .
    2. 1.2. Unscrew screws and remove carbon canister -4-  .
      G12833694Courtesy of PORSCHE CARS NORTH AMERICA, INC.
