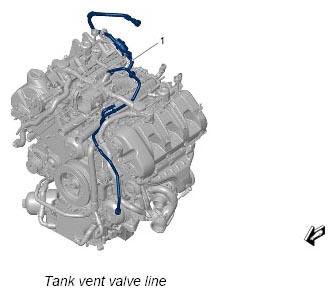

Disconnect tank vent valve line -1-
on cylinder bank 1 to 3.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

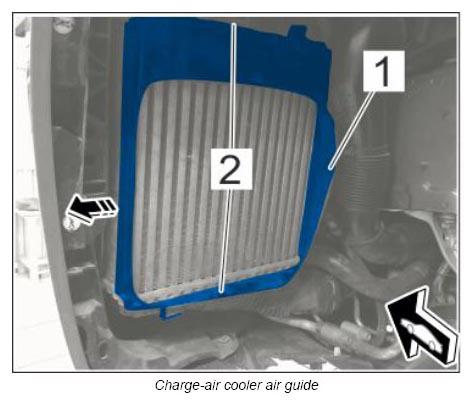

Remove air guide -1 -
on the charge-air cooler.
2.1. Lift up locking lugs -2-
using a plastic wedge and pull air guide out of the guides in -direction of arrow-
.
