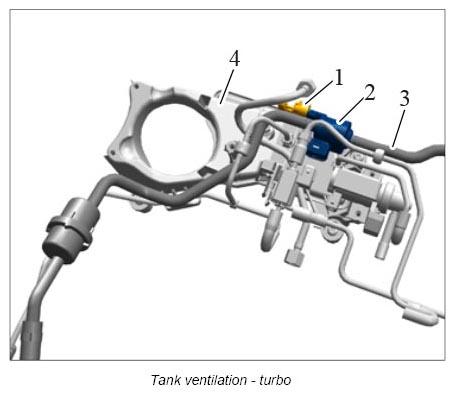

Install tank vent valve -2-
.
1.1. Connect Cayey plug -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

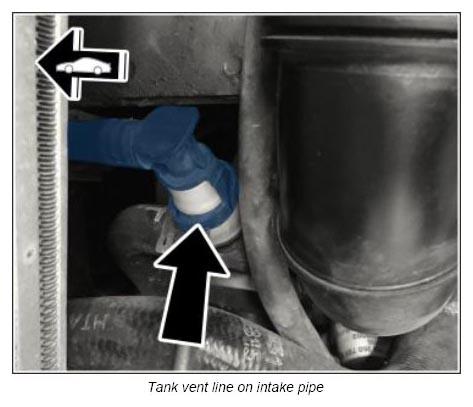

Connect tank vent line at the intake pipe.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

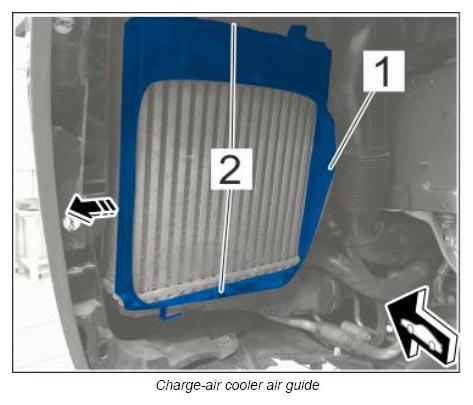

Install air guide -1-
on the charge-air cooler.
3.1. Insert air guide into the guides and engage locking lugs.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

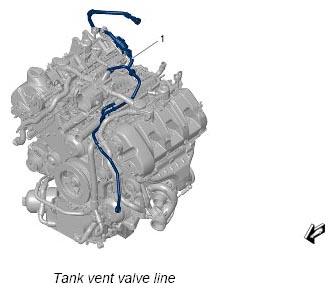

Connect tank vent valve line -1-
on cylinder bank 1 to 3.
