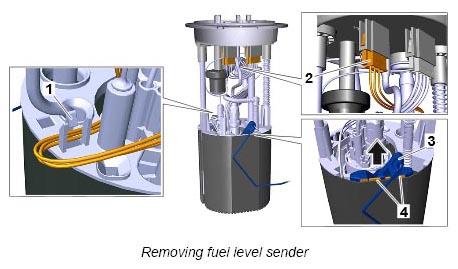

Removing fuel level sender
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
→ Wear personal protective gear.
→ Ventilate the work area well.
→ Never ingest or inhale.
→ Read specific information on the Hazard Sheet.
→ Do not smoke, eat or drink in the work area.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
Information
- Absorb any escaping fuel using a suitable binding material or a cloth .
- Cloths which have absorbed fuel must be disposed of according to the applicable national laws .
- The fuel system must be depressurized before starting work on it .
- Only work on the fuel system in well-ventilated rooms .
- Any seals which have been removed must always be replaced .
- Do not use any sealant containing silicone or silicone spray when the injection system is open. Traces of silicone drawn in by the engine are not combusted and damage the oxygen sensors .
Information
- If the tank must be opened for emptying, disconnect all connections .
Information
- The guiding rod of the fuel level sender must not be deformed .
- If the guiding rod is deformed, the fuel level sender must be replaced .
