Installing fuel level sender

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The guiding rod of the fuel level sender must not be deformed .
If the guiding rod is deformed, the fuel level sender must be replaced .

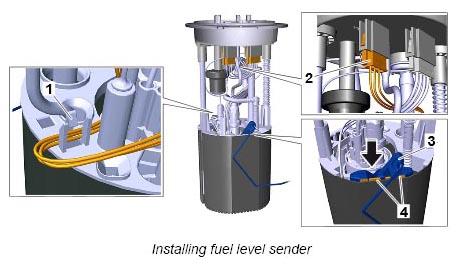

Install fuel level sender -3- .
1. 1.1. Install fuel level sender -3- in -direction of arrow- .
2. 1.2. Locking lugs -4- will lock with an audible click.
3. 1.3. Position line -1- in the guide.
4. 1.4. Connect electric plug connection -2- .
