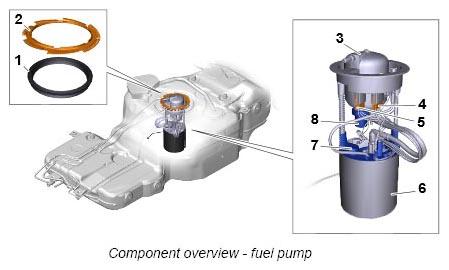

Component overview - fuel pump
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Seal/replace |
| 2 |
Fuel pump lock → Tightening torque: 110 Nm (81.5 ft lb.) |
| 3 |
Fuel filter |
| 4 |
Electric plug connection for fuel pump |
| 5 |
Electric plug connection for fuel level sender |
| 6 |
Fuel pump |
| 7 |
Fuel level sender |
| 8 |
Pressure regulator |
