Emptying fuel using VAS 5190 a fuel extractor

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

Place a cloth underneath to catch escaping fuel.

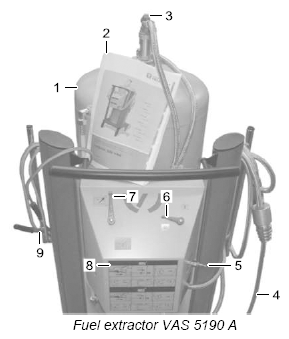

Fuel extractor WE 1592:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Fuel tank
2	Operating instructions
3	Valve
4	Suction/filling hose
5	Compressed air connection (connection for unlubricated/oil-free compressed air)
6	Switching pump on/off
7	Pumping out/filling
8	Quick Reference Guide
9	Earth cable with clamping pliers

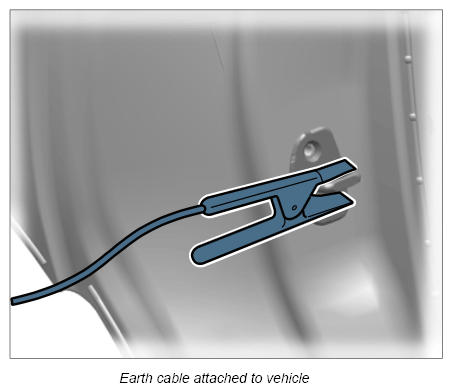

Connect the earth cable

1.1. For both units, the earth Cayey must be connected to the ground point on the vehicle while working!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide suction hose into the opening on the fuel level sender.
1. 2.1. Guide suction hose to the lowest position in the fuel tank.
Connect fuel extractor to the compressed air system at the compressed air connection.

Pump out fuel.

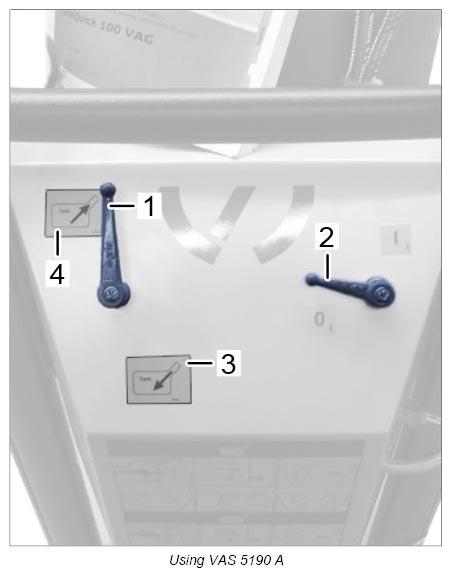

4.1. Move lever -1 - to Pumping out position -4- .

4.2. Switch on the pump using the lever -2- .
