Tools and materials
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

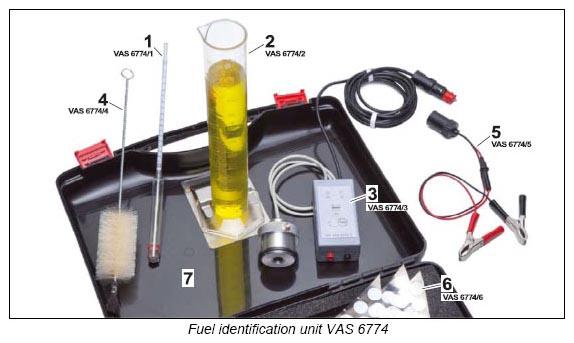

Overview of individual components of Fuel identification unit WE 1494
| 1 | VAS 6774/1 : Spindle (density gauge) |
| 2 | VAS 6774/2: Measuring cylinder |
| 3 | VAS 6774/3: Fuel detector (for measuring diesel) |
| 4 | VAS 6774/4: Cleaning brush |
| 5 | VAS 6774/5: Adapter with clamps for connecting a 12-volt battery |
| 6 | VAS 6774/6: Filter pads for fuel detector |
| 7 | Case |
