Installing rear lid seal

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place rear lid seal in installation position.

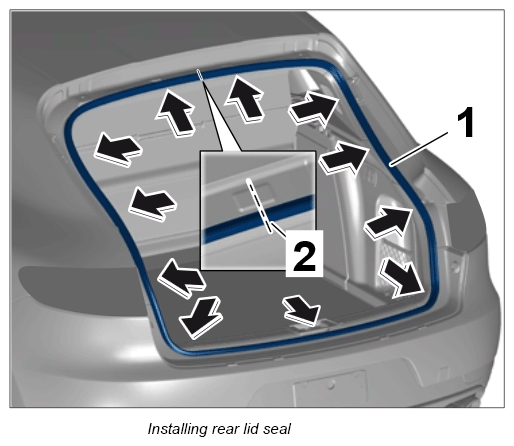

    G12834931Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Position marking on the seal -2-  at the center of the vehicle.
    2. 1.2. Fit seal with the vent holes facing outwards on the sheetmetal flange.
  2. Press rear lid seal -1-  onto the sheetmetal flange.
  3. Check that the seal is fitted securely and is flush, especially in the rounded areas.
