Removing lower part of rear lid lock
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

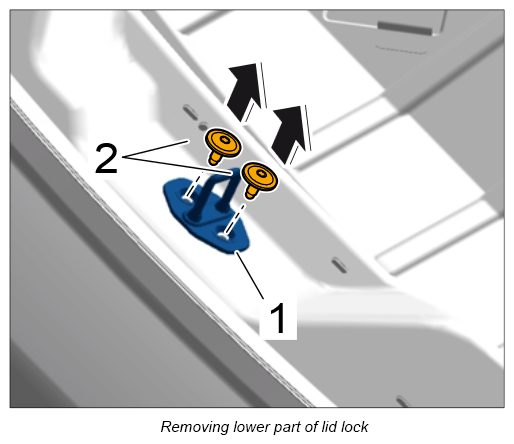

- Mark installation position of lower part of rear lid lock -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Unscrew fastening screws -2-
for lower part of lid lock -1-
.
- Remove lower part of lid lock by pulling it up.
