Installing rear lid release

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Incorrect installation of release switch.
  • Damage to rear window trim.

→ Carefully press in release switch without using excessive force.

Information

Steps 1 to 1.7  described below must only be carried out if a new contact plate  with round connector  is installed.

  1. Replace plug connection for rear lid release on the vehicle side  .

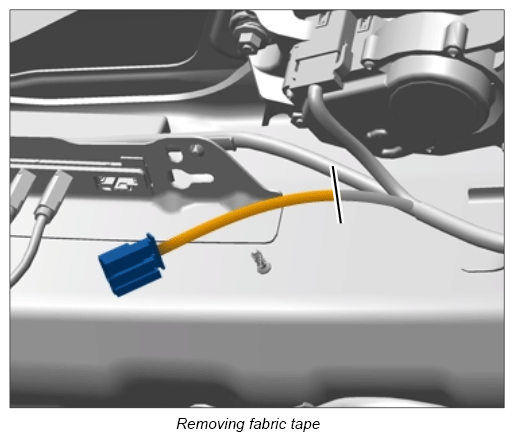

    1. 1.1. Remove fabric tape around the main wire harness as shown.
      G12834870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Select a place for the joint where there is enough space to join the individual lines  .
      • Mark the electric lines if necessary  .
      • If the wire harness is damaged to such an extent that it cannot be repaired using a crimp connector, the individual lines of the connector must be replaced. For further information, see: → 9X00IN Ordering and repairing electric plug connections→ Spare parts requirements for "connectors" - new repair concept: Information, required details and connector search (25/14)
    2. 1.2. Cut off connector lines -1-  in the marked area individually  using stripping pliers VAS 1978/3 -2-  .
      G12834871Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 1.3. Strip the lines you have just cut (yellow/blue and brown) -1-  using the stripping pliers VAS 1978/3 -2-  .

      The green/white line in the wire harness is not used and must then be insulated using fabric tape.

      G12834872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    4. 1.4. Insert the stripped lines -1-  into the corresponding crimp connector -2-  on the repair connector, Part No. 95B.998.030  .

      Line assignment:

      Brown line  of the connector to brown/white  line of the main wire harness.

      Yellow/blue line  of the connector to yellow/blue  line of the main wire harness.

      G12834873Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    5. 1.5. Crimp on both lines using crimping pliers VAS 1978/1-1  .
      G12834874Courtesy of PORSCHE CARS NORTH AMERICA, INC.

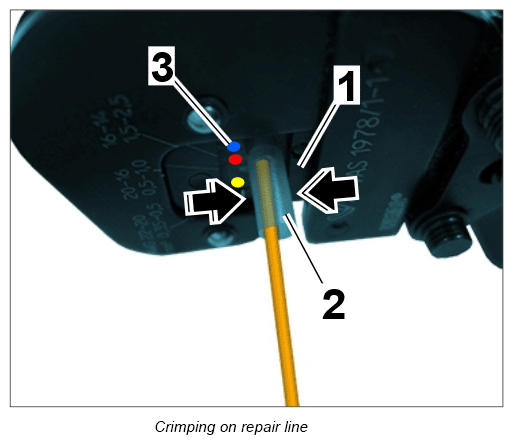

      1. 1.5.1. Insert crimping pliers insert -1-  according to the color marking -3-  on the crimp connector -2-  into the crimping pliers VAS 1978/1-1  .
      2. 1.5.2. Crimp on the crimp connector -2-  using crimping pliers VAS 1978/1-1  .

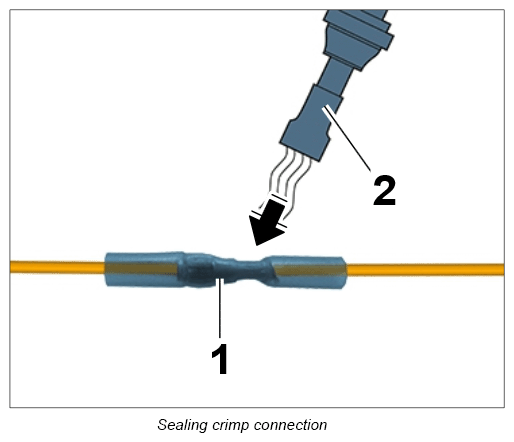

    6. 1.6. Seal shrink-fit hose on the crimp connection -1-  using hot-air blower VAS 1978/14A -2-  .
      G12834875Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    7. 1.7. Wrap fabric tape around the main wire harness and connector lines.
      G12834876Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install rear lid release  .
    G12834877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

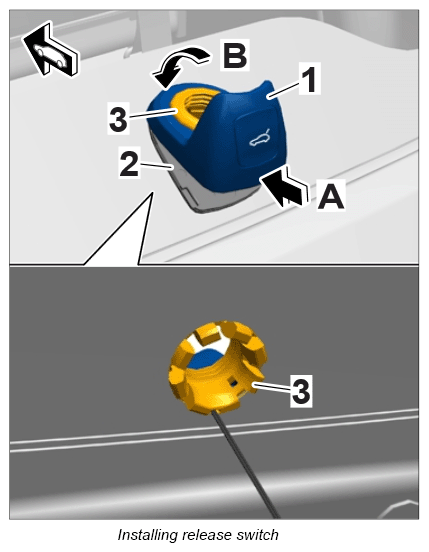

    1. 2.1. Coat the retainer plate -2-  with soapy water before installing the new release switch -1-  .
    2. 2.2. Position the release switch -1-  on the retainer plate -2-  as shown and check that the sealing grommet -3-  is fitted correctly in the opening for the rear window all the way around.
    3. 2.3. Guide in release switch -1-  at the bottom of the retainer plate -2-  first - A-  and then engage it at the top -B-  .
  3. Connect electric plug connection.
    G12834878Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Perform function test on rear lid release.
