Installing upper part of front lid lock: Notes
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The self-locking nuts must always be replaced .
- Adjust upper part of lock with respect to the lid according to the noted position (impression made at the factory).
- Fit fastening nuts so that the upper part of the lock can still be moved.

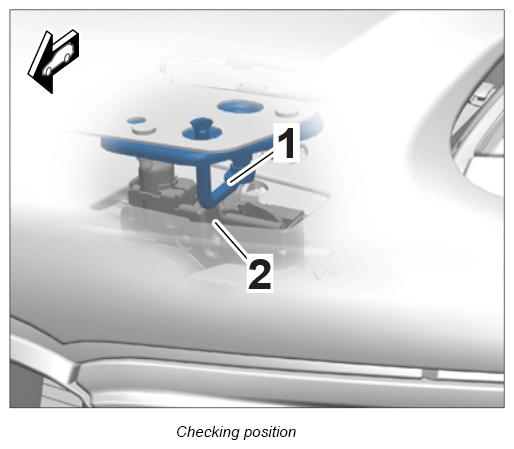

- Lower the lid slowly until the clip for the upper part of the lock -1- is touching the lower part of the lock. The clip must be centered flush with the slit in the lower part of the lock -2- .
