Removing starter

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G12833907Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen screws on the rear cable guide. → Rear cable guide
    G12833908Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw off fastening nuts -1 and 2-  on the electric connections at the starter.
  3. Remove electric connections -3 and 4-  .
    G12833909Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew and remove fastening screws -2-  on the cable duct.
    G12833910Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Disconnect connectors for injectors -1-  on cylinder bank 1.
  6. Release connector on the rear knock sensor for cylinder bank 1 -1-  and disconnect it.
    G12833911Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Carefully hold the cable duct to one side.
  8. Unscrew and remove fastening screws -1-  on the starter.
    G12833912Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Remove starter.

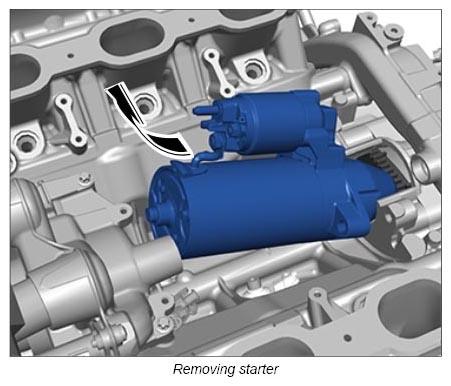

    G12833913Courtesy of PORSCHE CARS NORTH AMERICA, INC.
