Notes on removing and installing the battery
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A battery charger for providing an external power supply or for jump-lead starting is connected directly to the battery in the vehicle.
- Damage to battery sensor.
- Battery sensor sends incorrect battery values to the vehicle electrical system.
→ Always connect a battery charger for providing an external power supply or for jump-lead starting to the defined connections in the engine compartment. → 2X00IN BATTERY TRICKLE CHARGING
Information
- The battery is located in the luggage compartment under the loadspace floor.
- In order to avoid triggering the siren in vehicles with an additional alarm siren, the battery must be disconnected while the ignition is on!
- All loads must be switched off beforehand! Remove ignition key!
- Never disconnect battery with engine running!
- Never start engine without a securely connected battery!
- To prevent damage to the battery, the battery terminal clamps should only be attached by hand - without excessive force.
- Check that the battery is seated correctly after installation. A loose battery presents other dangers, such as: - Reduced service life due to vibration damage. - Noises. - Damage to the battery housing from mounting parts. - Inadequate crash safety.
Operating principle of central venting
Information

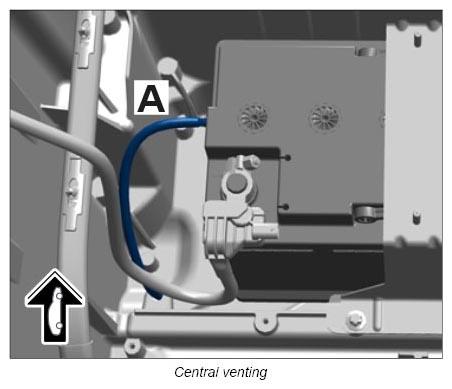

- State-of-the-art batteries have central venting -A- .
- In certain battery states, the gas produced during charging can emerge centrally through an opening on the upper cover side. Backfire protection is integrated at the same position and prevents the combustible gas in the battery from igniting.
- On batteries with a vent hose -A- , check that the vent hose is not disconnected or pinched. Only then can the battery be freely vented.
