Removing battery sensor
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Switch off all loads and remove the ignition key.
- Do not disconnect the battery while the engine is running .
- Disconnect and re-connect battery with extreme caution .
Information
The battery sensor and battery ground strap form one unit and can only be replaced together.
- Switch off ignition and pull remote control out of ignition lock.
- Disconnect battery ground strap. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY

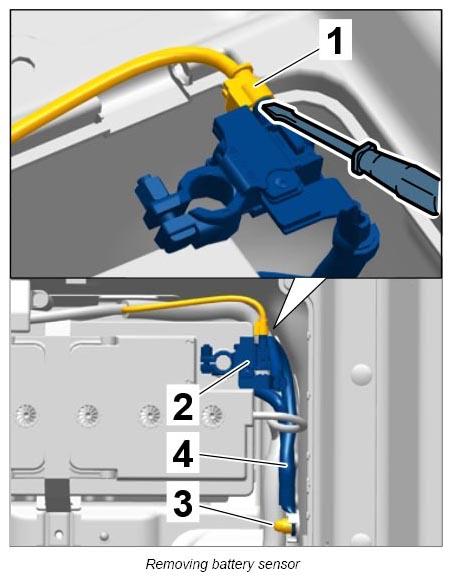

- Carefully release electric plug connection -1- using a screwdriver and disconnect it from the battery sensor -2- .
- Screw off fastening nut -3-
and remove battery sensor and ground strap -4-
.
