Removing hydraulic unit

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Replacing the hydraulic unit/control unit

The hydraulic unit forms a single unit with the control unit.
The hydraulic unit and control unit are always replaced together.
When replacing the hydraulic unit/control unit, the new assembly must be to hand before the old one is removed.
The data as well as the coding of the old control unit must be transferred to the new unit before the old one is removed.

→ When replacing, note the following: → 453055 REPLACING HYDRAULIC UNIT/CONTROL UNIT .

Information

When fitting the hydraulic connections, the electric plug connections on the control units must remain connected as long as possible. This prevents the plug connections on the hydraulic unit or in the connectors inside from being splashed with brake fluid or water .
Any damp connector must be wiped dry before being disconnected from the connector on the hydraulic unit. If necessary, provide the connector with a suitable protector .
Brake fluid on electrical contacts (even thinned brake fluid) leads to corrosion and may cause faults in the system .
The brake lines must not be bent in the area of the hydraulic unit .
Clean the interfacing points of the brake lines, but not with cleaning agents .
Rinse off any brake fluid emerging thoroughly with water .

Place a suitable cloth underneath to catch any emerging brake fluid.

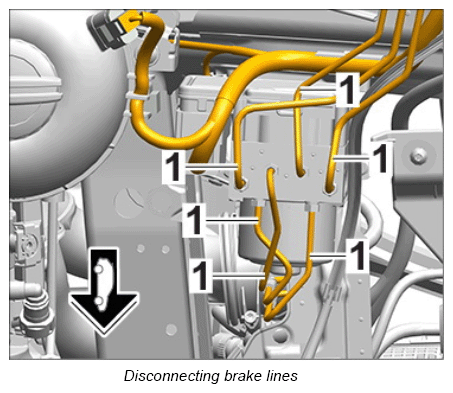

Disconnect brake lines -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Mark the brake lines to prevent them from being confused.
2. 2.2. Unscrew cap screws for the brake lines.
3. 2.3. Pull brake lines -1- out of the bores and close off immediately using suitable stoppers.
4. 2.4. Lay brake lines aside carefully , fixing them in place if necessary.

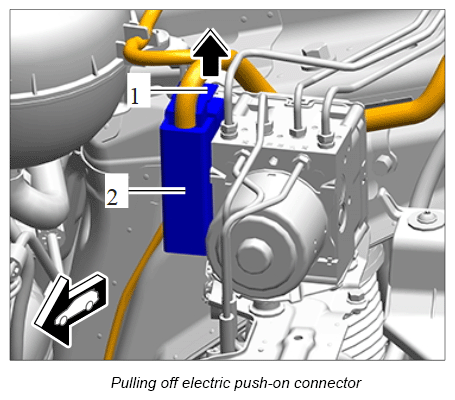

Pull off electric push-on connector -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Pull slide lock -1- up.
2. 3.2. Pull off electric push-on connector -2- .
Pull hydraulic unit together with control unit and holder up and off.
