Subsequent work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Sudden filling of the air spring
  • Risk of squashing

→ Do not reach into the danger area.

→ Keep third parties away from the danger area.

→ Remove tools from the danger area.

  1. Fill the relevant air spring using PIWIS Tester II 9818  . → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM .
  2. Perform a visual test and touch test on the rear air springs.

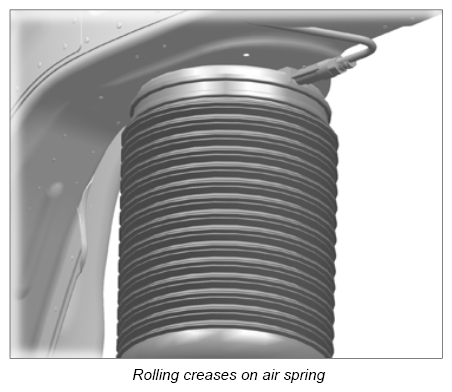

    Air springs must be adequately filled and rolling creases in the protective boot must be removed correctly (no kinks)!  .

    G12834658Courtesy of PORSCHE CARS NORTH AMERICA, INC.
