Removing rear air spring

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Air springs can become kinked/fall out

Risk of damage to air springs

→ Deactivate the levelling system before raising the vehicle.

→ Check the bellows before lowering the vehicle.

Information

To prevent damage to the air springs, pay particular attention to the following points when handling air springs:

Never empty air springs completely . This applies to both installed and removed air springs. Air springs must only be bled as described under → 4301IN DRAINING AND FILLING THE LEVELLING SYSTEM .
An air spring is depressurized if the pressure in the air spring is less than 1.5 bar .
Do not pull the air spring apart .
Do not bend the air spring .
Do not carry the air spring at the insertion pin .
The length must not be less than 220 mm .
Never lower a vehicle with empty air springs .
Air springs must be installed in the vehicle within one year .

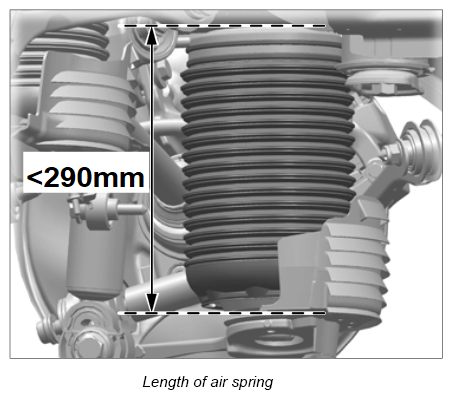

Raise the wheel bearing housing until an air spring length of < 290 mm is reached (the length must not be less than 220 mm!).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

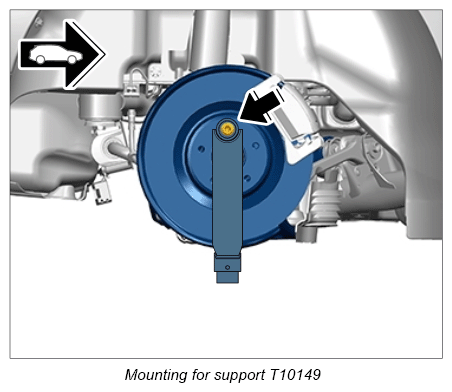

1. 1.1. Turn the wheel hub in such a way that a bore for a wheel bolt is at the top.
2. 1.2. Support T10149 must be secured to the wheel hub with a wheel bolt.
3. 1.3. Support T10149 must now be fitted into the Transmission and Engine Jack WE 1599 .

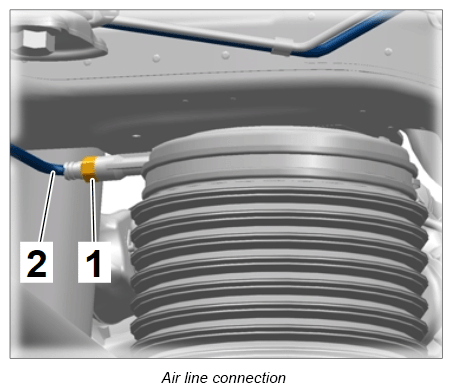

Unscrew union nut -1- and pull off air line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lower the transmission jack.

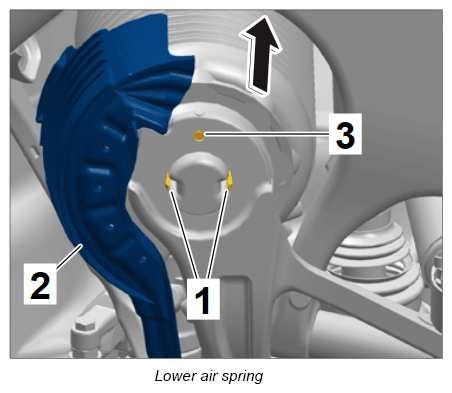

Press clips -1- on the lower air spring together and press the air spring upwards.
Remove stone guard -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

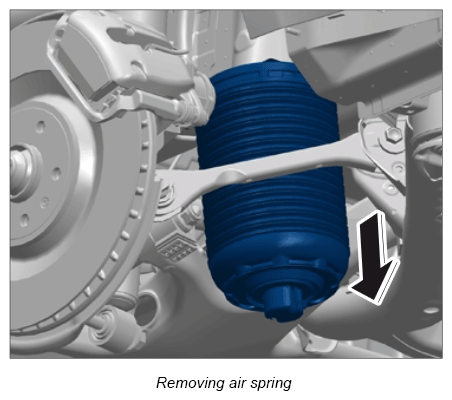

Carefully remove the air spring by pulling it downwards.
Do not pull air spring apart!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
