Installing rear air spring
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Installation is performed in reverse order. Pay particular attention to the following:
The length of the air spring must not exceed max. 290 mm! Otherwise, there is a danger that the air spring will be damaged .

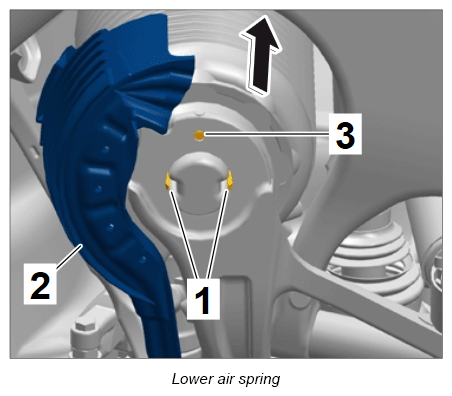

- Align the air spring in such a way that the pin of the lower air spring is seated in the bore on the support -3-
at the bottom.
Observe specified tightening torques:
Air line to air spring: Tightening torque 3 Nm (2 ft. lb.)
