Subsequent work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install shock absorber fork. → 408919 REMOVING AND INSTALLING SHOCK ABSORBER FORKS
  2. Tighten nut -2-  on level sensor. Tightening torque 9 Nm (6.5 ft. lb.)
    G10032905Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install additional reinforcement on dome strut → 408619 REMOVING AND INSTALLING FRONT STRUT (DOME STRUT) .
  4. Install front trim panel → 700219 REMOVING AND INSTALLING FRONT TRIM PANEL .

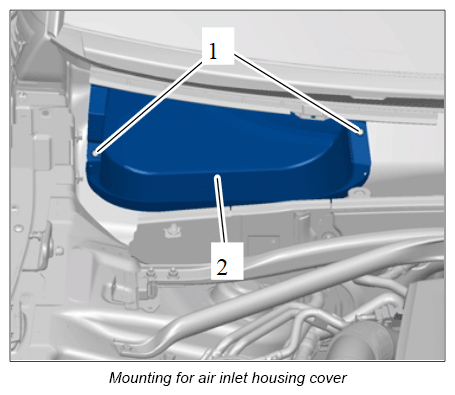

  5. Install air inlet housing cover -2-  and tighten fastening screws -1-  .
    G12834642Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Install cowl panel cover → 508719 REMOVING AND INSTALLING COWL PANEL COVER .
  7. Fill the levelling system. → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
  8. Fit wheel → 440519 REMOVING AND INSTALLING WHEEL .
