Replacing valve unit (levelling system): Notes

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

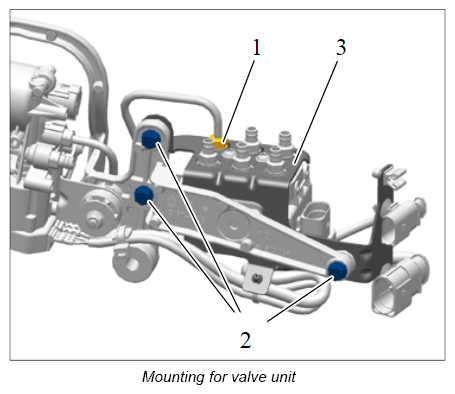

  1. Disconnect connecting line from the compressor to the valve unit (blue) -1-  at the valve unit.
  2. Unscrew fastening screws -2-  from the valve unit
  3. Remove valve unit -3-  .
G12834629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
