Replacing front level sensor: Notes

Information

Either two or four level sensors are installed on the vehicle, depending on equipment variant:

• Steel springs without PASM: only left side of the vehicle (front and rear axle)
• Air springs and steel springs with PASM: left and right side of the vehicle (front and rear axle)

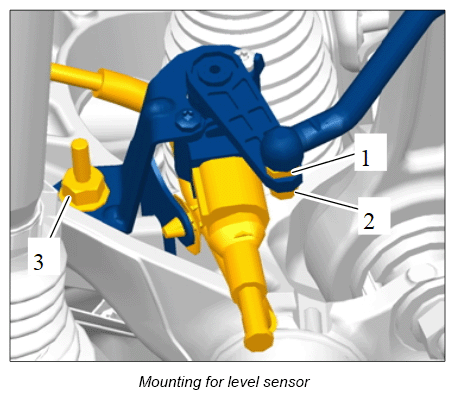

1. Press electric connector -1-  together and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Unscrew nut -2-  for the level sensor on the lower trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Loosen nut -3-  and remove level sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
