Removing PASM control unit
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Installation position: → 4301IN POSITION OF AIR SUSPENSION COMPONENTS

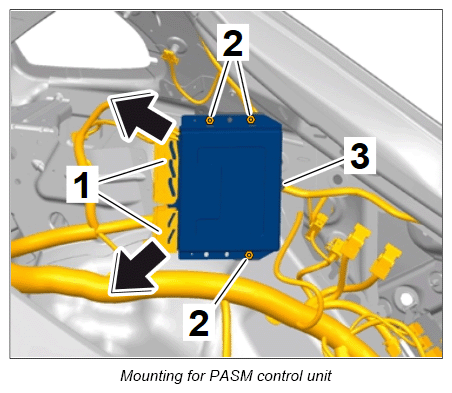

- Release connector -1- and disconnect it.
- Unscrew nuts -2- .
- Remove PASM control unit -3- from the holder.
