Component arrangement - air suspension
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
The Macan models feature an optional levelling system with fully supporting air suspension on both axles and an electronically controlled damping system Porsche Active Suspension Management (PASM).
The air suspension with level control makes it possible to actively adapt the ground clearance of the Macan to the current driving situation or to the vehicle load.
Depending on the load, various vehicle ride heights with various suspension characteristics can be achieved by increasing or decreasing the air volume. The amount of air needed for each air-spring strut is determined by means of a control unit and provided via an air supply consisting of a compressor, a solenoid valve unit and pressure accumulator.

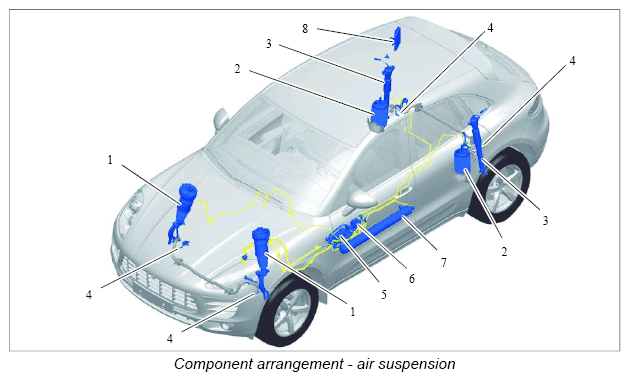

| No. | Description of component | Qty. | Position |
|---|---|---|---|
| -1- | Air-spring strut, front axle | 2 | Wheel housing/lower trailing arm |
| -2- | Air spring, rear axle | 2 | Air spring mounting on wheel bearing housing |
| -3- | Vibration damper, rear axle | 2 | Vibration damper mounting on wheel bearing housing |
| -4- | Level sensors | 4 | Lower trailing arm/front axle Lower trailing arm/rear axle |
| -5- | Compressor | 1 | Driver's side, lower |
| -6- | Valve unit | 1 | Driver's side, lower |
| -7- | Pressure accumulator | 1 | Driver's side, lower |
| -8- | Levelling system control unit/PASM | 1 | Luggage compartment, right |
