Height measurement point on front axle
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Check the following at the height measuring point on the front axle:
- Lower edge of the wing is covered by the front lid .
- Only measure the height on the front axle when the front lid is open .

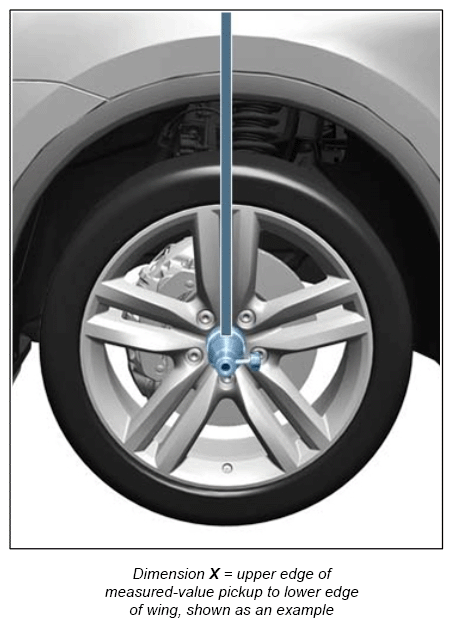

The distance between the lower edge of the wing and upper edge of the measured-value pickup -X- is measured.
