Removing fuel line (high-pressure)
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fuel and hot fuel lines.
- Danger of scalding
→ Allow the fuel to cool down before opening line connections.
→ Wear protective gloves.
→ Wear protective goggles.
Information
The rules relating to cleanliness and instructions for working on the fuel system must always be observed before and during the work.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.

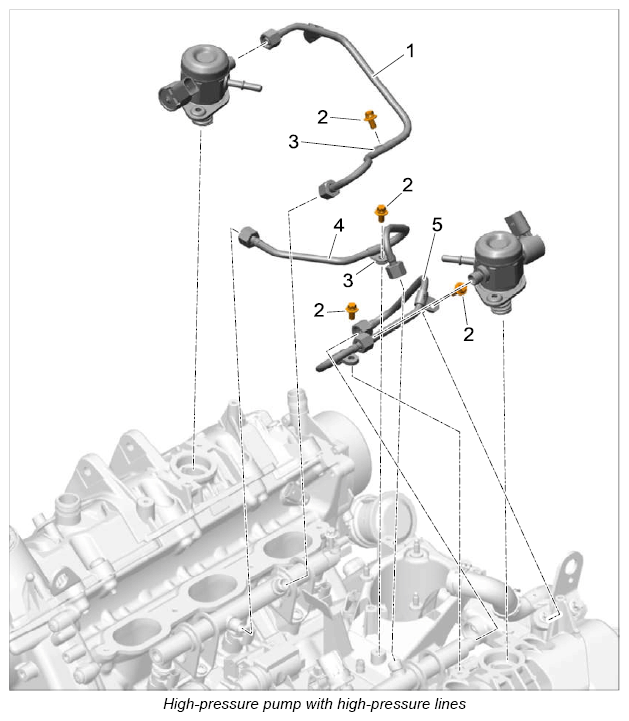

- Unscrew fastening screws -2- on the high-pressure lines -1, 4 and 5- .
- Loosen union nuts on high-pressure line -1-
.
- 2.1. Remove high-pressure line -1- .
- Loosen union nuts on high-pressure line -4-
.
- 3.1. Remove high-pressure line -4- .
- Loosen union nuts on high-pressure line -5-
.
- 4.1. Remove high-pressure line -5- .
Information
- The fuel high-pressure lines must only be used once.
- The line must be replaced after removing or loosening the union nuts.
- Dispose of high-pressure lines -1, 4 and 5-
.
