Installing fuel line (high-pressure)
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The fuel high-pressure lines must only be used once.
- The line must be replaced after removing or loosening the union nuts.

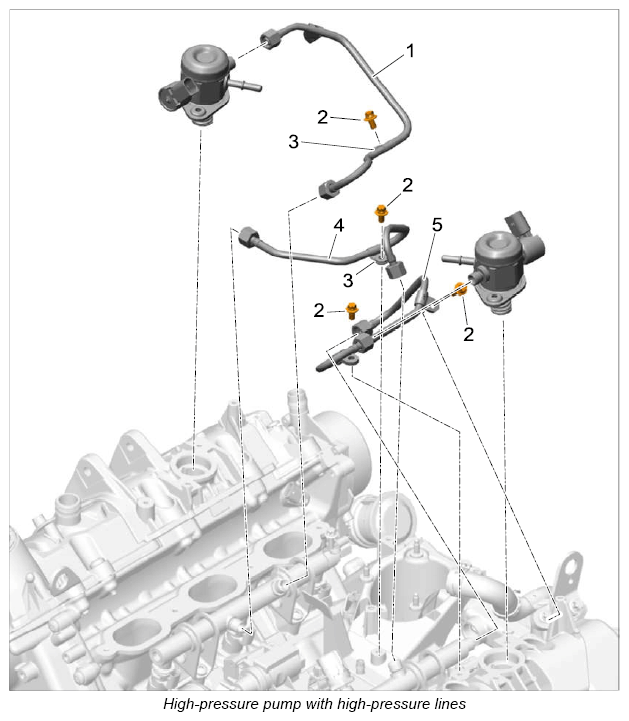

- Position new high-pressure line -1, 4 and 5- in installation position.
- Tighten union nuts on the high-pressure lines hand-tight.
- Screw in screws -2- for clamps -3- hand-tight.
- Pre-tighten union nuts on the high-pressure lines.
Initial tightening 8 Nm (6 ft lb.)
- Tighten screws -2-
for clamps -3-
.
Tightening torque 10 Nm (7.5 ft lb.)
- Tighten union nuts on the high-pressure lines.
Final tightening +50°
