Removing and installing pressure sensor

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

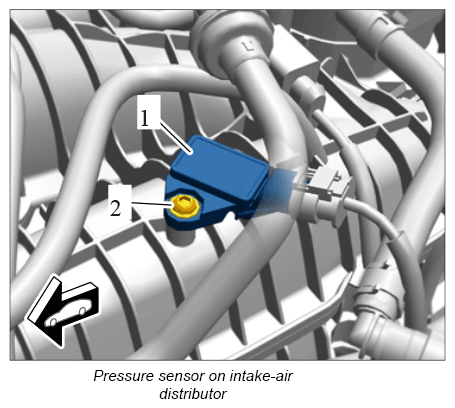

  1. Remove pressure sensor.
    1. 1.1. Release electric plug connection for the pressure sensor -1-  and disconnect it.
    2. 1.2. Unscrew screw -2-  .
    3. 1.3. Remove pressure sensor -1-  by prising and turning it slightly.
      G12834958Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. If the sealing ring is damaged, replace the pressure sensor.
  3. Insert pressure sensor -1 -  into the intake-air distributor by turning it slightly.
    1. 3.1. Screw in and tighten screw -2-  . Tightening torque 3 Nm (2 ft lb.)
    2. 3.2. Plug in and lock electric plug connection for the pressure sensor -1-  .
