Removing vacuum reservoir

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove vacuum reservoir.
    1. 1.1. Release electric plug connection -1-  for the boost pressure control cycle valve and pull it off.
    2. 1.2. Pull off pressure line -2-  for boost pressure control at the cycle valve.
    3. 1.3. Release and pull off plug connections -3-  for the tank vent line. Unclip tank vent line from the bracket.
    4. 1.4. Release and pull off electric plug connection -4-  for the tank vent valve.
    5. 1.5. Pull off circulating air line -5-  .
    6. 1.6. Release and pull off electric plug connection -6-  for change-over valve for recirculated air.
    7. 1.7. Loosen screw -7-  on the fuel connection line holder.
    8. 1.8. Loosen connections -8-  for the fuel connection line.
    9. 1.9. Loosen screws -9-  on the vacuum reservoir.
    10. 1.10. Remove vacuum reservoir.

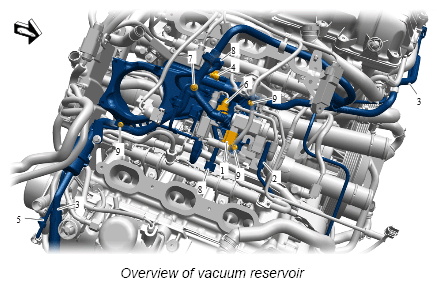

      G12833830Courtesy of PORSCHE CARS NORTH AMERICA, INC.
