Installing vacuum reservoir

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

WARNING: Tightening torques, tightening sequence and assembly overviews for the engine and transmission:

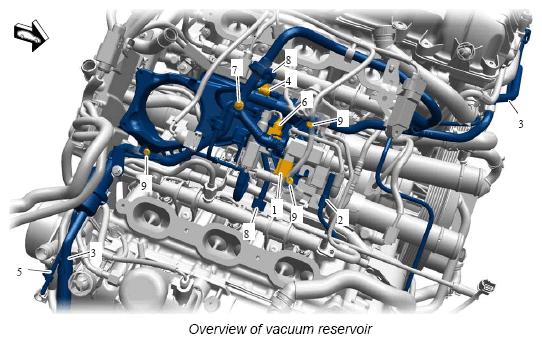

Install vacuum reservoir.

1.1. Insert vacuum reservoir.
1.2. Screw in and tighten screws.
1.3. Tighten connections for the fuel connection line.
1.4. Tighten screw on the fuel connection line holder.
1.5. Plug in and lock electric plug connection for change-over valve for recirculated air. (Check locking mechanism by pulling on it)
1.6. Plug in and lock electric plug connection for tank vent valve.
(Check locking mechanism by pulling on it)
1.7. Plug in and lock plug connections for the tank vent line. Clip tank vent line into the bracket.
(Check locking mechanism by pulling on it)
1.8. Insert pressure line for boost pressure control at the cycle valve.

1.9. Plug in and lock electric plug connection for the boost pressure control cycle valve.

(Check locking mechanism by pulling on it)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
