Removing throttle housing

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

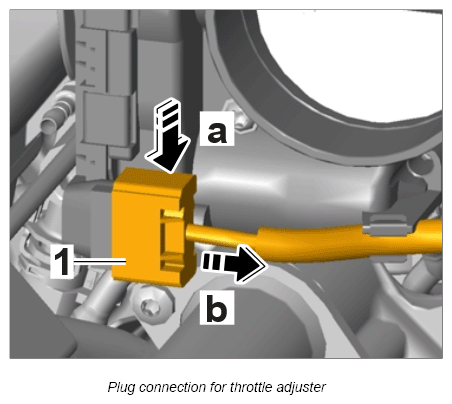

  1. Disconnect connector -1-  on the throttle housing and pull cable out of the clip.
    G12833810Courtesy of PORSCHE CARS NORTH AMERICA, INC.

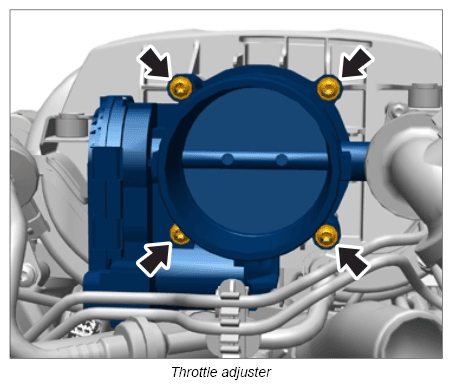

  2. Unscrew and remove screws on the throttle housing.
    G12833811Courtesy of PORSCHE CARS NORTH AMERICA, INC.

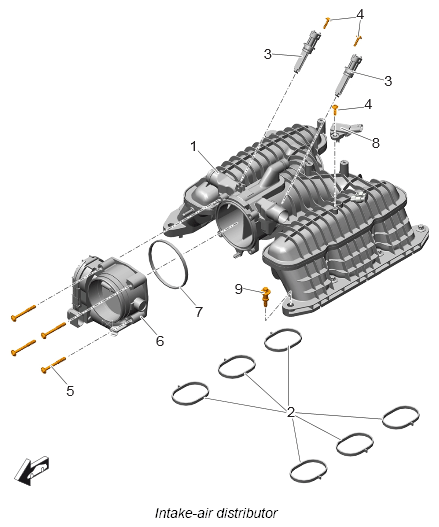

  3. Remove throttle housing -6-  .
    G12833812Courtesy of PORSCHE CARS NORTH AMERICA, INC.
