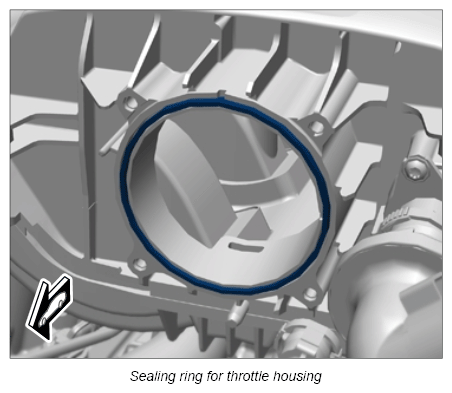

Check the condition of the sealing ring. Replace sealing ring if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

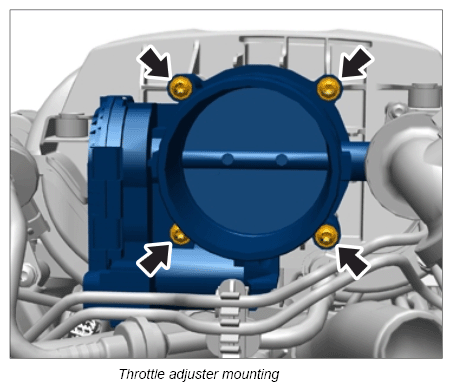

Position throttle housing.
2.1. Fit and tighten screws.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

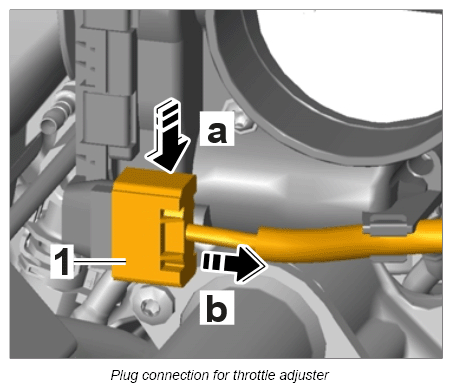

Fit connector -1-
on the throttle housing and insert cable into the clip.
