Removing fuel collection pipe

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

WARNING: Leaking fuel supply lines

Emerging fuel
Risk of fire

→ Perform leak test.

NOTE: Dirt on injection system components

Material damage
Rough-running engine
Bad exhaust emissions

→ Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.

→ Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.

→ Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.

→ Only install clean parts. Do not take spare parts out of the packaging until just before installation.

→ Never use compressed air when the system is open. Do not move the vehicle.

Information

Do not bend high-pressure lines. Check that the connection points are not damaged and are perfectly clean and check that the screws/bolts are not seized and that there is no thread damage. Fit union nuts on all connection points by hand before screwing in screws or bolts. Remove dirt on the conical/ball joints. Check connection points for leaks following fitting.

Information

The ignition must be switched off when working on the fuel system.
Absorb any escaping fuel using a suitable binding material or a cloth.
Cloths which have absorbed fuel must be disposed of according to the applicable national laws.
The fuel system must be depressurized before starting work on it.
Only work on the fuel system in well-ventilated rooms.
Any seals which have been removed must always be replaced.

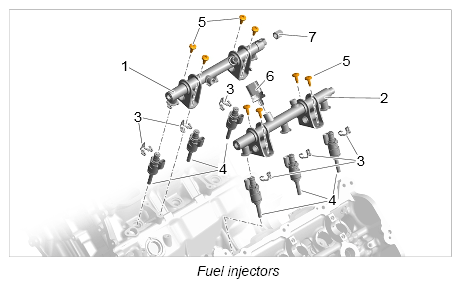

Unscrew fastening screws -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

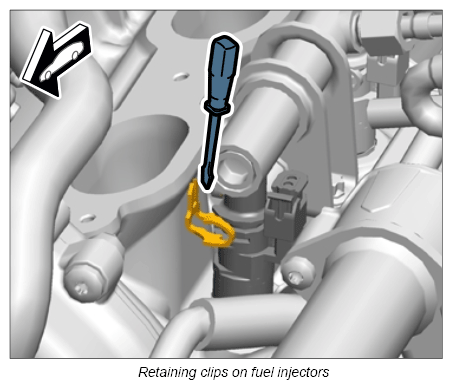

Loosen retaining clips using a screwdriver.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

For cylinders 1 - 3

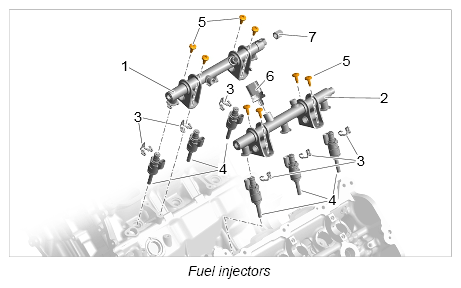

Remove fuel collection pipe -1- .
1. 3.1. Place fuel collection pipe -1- on a clean surface.
For cylinders 4 - 6
Remove fuel collection pipe -2- .
1. 4.1. Place fuel collection pipe -2- on a clean surface.
Remove retaining clips -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
