Removing air cleaner housing

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

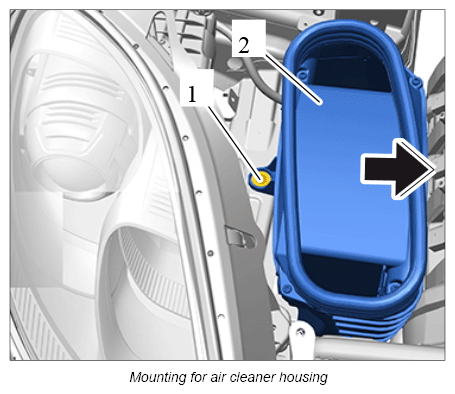

Loosen fastening screw -1- and press air cleaner housing -2- aside carefully in -direction of arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

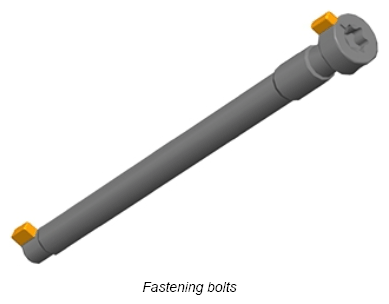

- Loosen and tighten fastening bolts only in the specified direction.
- Turn fastening bolts by max. 90°, otherwise the guide lugs will break off.
- Replace damaged fastening bolts.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

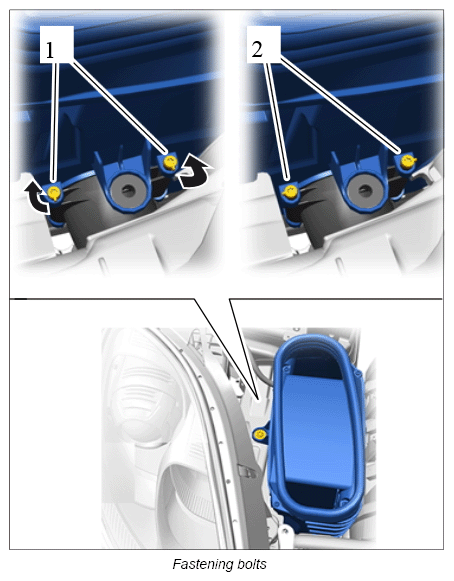

Remove fastening bolts -1- .

2.1. Press fastening bolts -1- down slightly and turn 90° in -direction of arrow- .

2.2. Pull out loosened fastening bolt -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

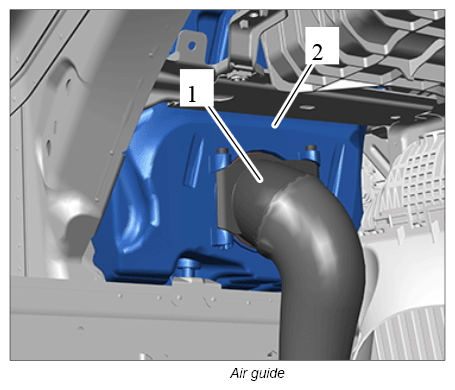

Pull air guide -1- out of air cleaner housing -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

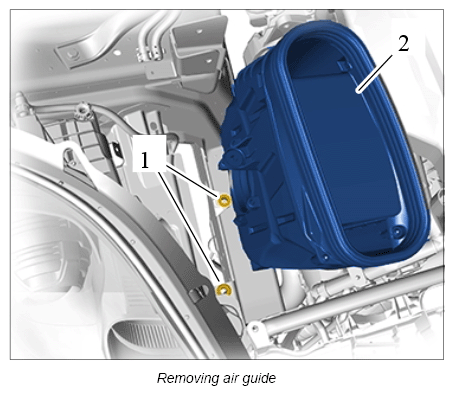

Remove air guide -2- , making sure that the rubber sleeves -1- do not fall down.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
