Installing air cleaner housing

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Check that the rubber sleeves -1- are seated correctly and position air cleaner housing -2- in the engine compartment, making sure that the rubber sleeves -1 - do not fall out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

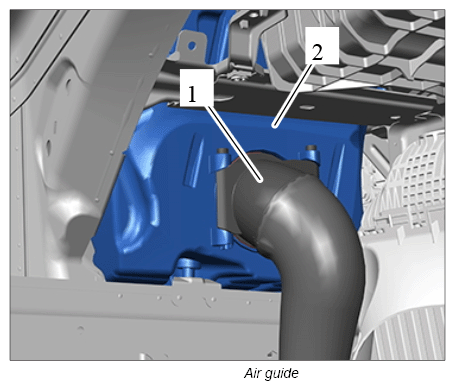

Position air guide -1 - in air cleaner housing -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

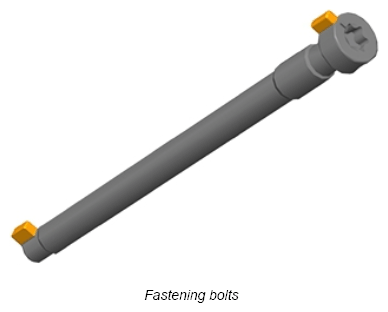

Information
- Loosen and tighten fastening bolts only in the specified direction.
- Turn fastening bolts by max. 90°, otherwise the guide lugs will break off.
- Replace damaged fastening bolts.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

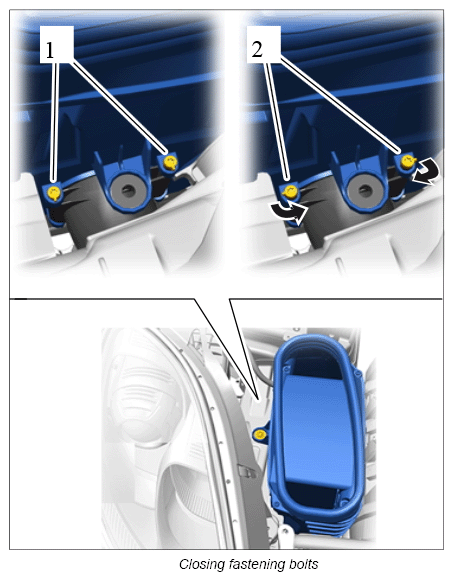

Tighten fastening bolts -2- .

3.1. Position fastening bolts -2- in air cleaner housing and turn in -direction of arrow - by 90° -1- . Torque angle 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

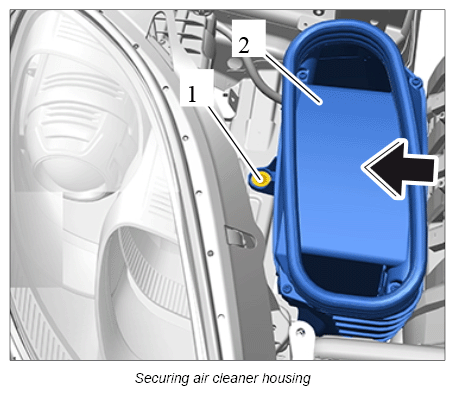

Position air cleaner housing -2- in -direction of arrow - and tighten fastening screw -1- . Tightening torque 3.5 Nm (2.5 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
