Installing air-cleaner element for cylinder bank 1

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always use an original air-cleaner element.
The air cleaner housing must always be perfectly clean.
Use (silicone-free) sliding compound for fitting the air guide hoses.
Secure all hose connections with standard hose clamps.
Always check the following when blowing out the air cleaner housing: To avoid malfunctions, cover critical air-supply components, such as air guide pipes, etc. with a clean cloth.
Observe disposal regulations!

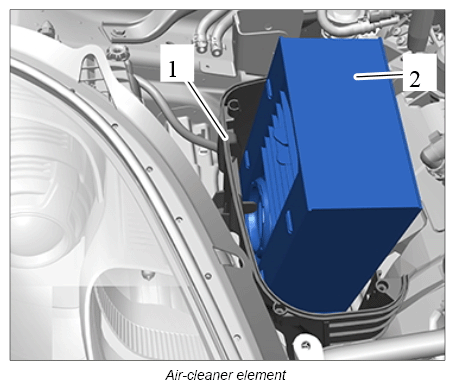

Position air-cleaner element -2- in air cleaner housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

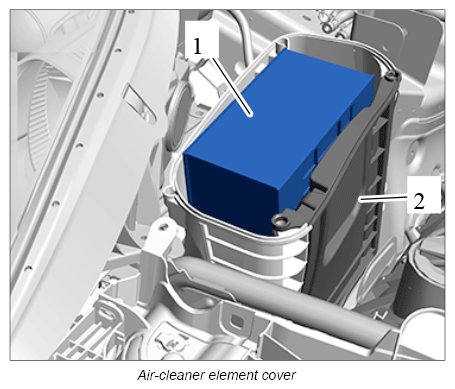

Position and close cover -2- on air cleaner housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

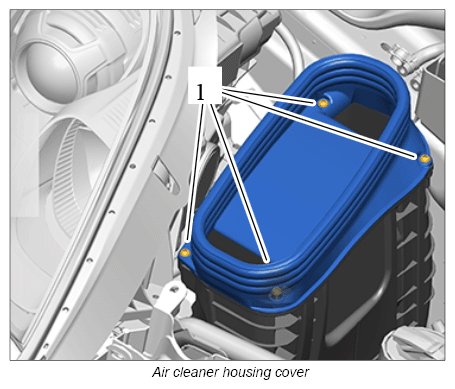

Position air cleaner housing cover and tighten fastening screws -1- . Tightening torque 3.5 Nm (2.5 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
