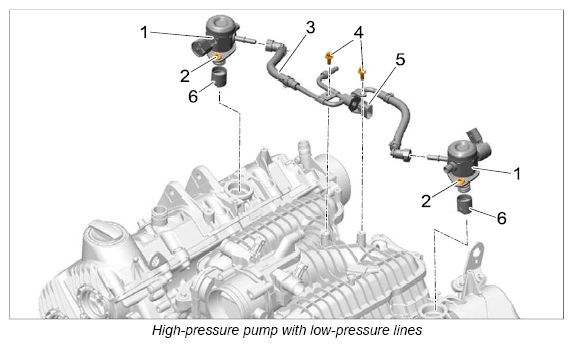

High-pressure pump and low-pressure lines
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | High-pressure pump/replace O-ring |
| 2 | Screw, M6 x 20/replace → Tightening torque: 10 Nm (7.5 ft lb.) |
| 3 | Low-pressure fuel line |
| Check locking mechanism on the quick-connecting locks by trying to pull them off! | |
| 4 | Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 5 | Fuel pressure sensor (low-pressure sensor) → Tightening torque: 20 Nm (15 ft lb.) |
| 6 | Roller tappet |
