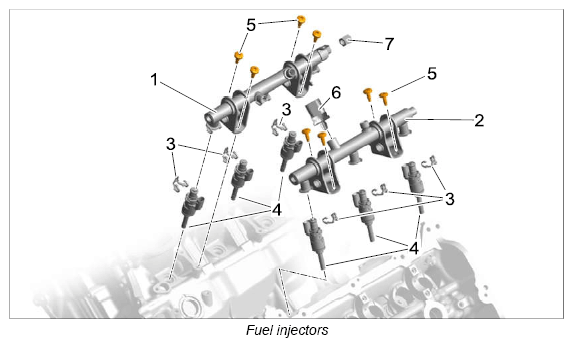

Fuel injectors and fuel collection pipe
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Fuel collection pipe for cylinder 1-3 |
| 2 | Fuel collection pipe for cylinders 4-6 |
| 3 | Fuel injector holder |
| 4 | Fuel injector |
| Always coat O-ring on the fuel injector with engine oil before installation. | |
| 5 | Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 6 | Fuel pressure sensor (high-pressure sensor) → Tightening torque: 20 Nm (15 ft lb.) |
| 7 | Stopper → Tightening torque: 25 Nm (19 ft lb.) |
