Removing directional-control valve
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

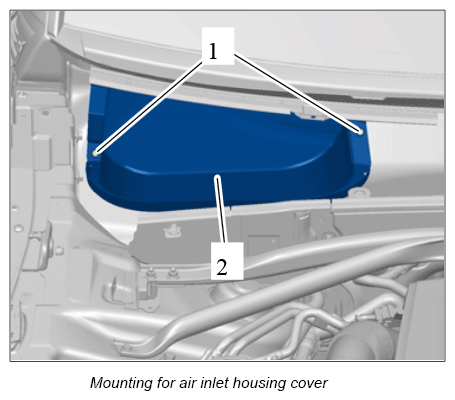

- Unscrew fastening screws -1-
and remove air inlet housing cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

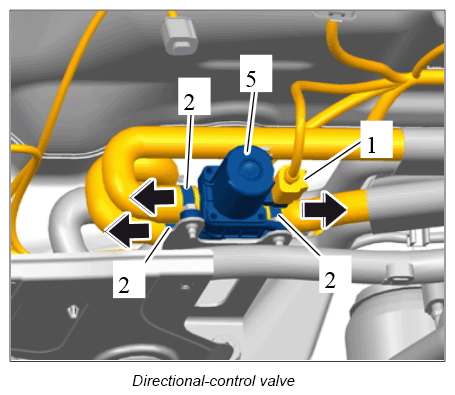

- Disconnect connector -1-
.
- Loosen spring band clamps -2-
.
- Pull off hoses.
- Unscrew fastening screws.
- Remove directional-control valve -5-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
