Installing circulating pump for auxiliary heater

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

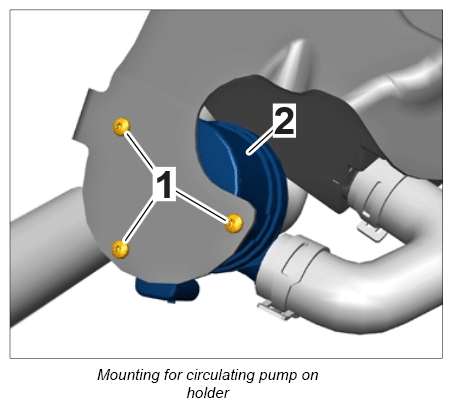

  1. Position circulating pump -2-  on holder and tighten screws -1-  to the prescribed tightening torque.
    G12837449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

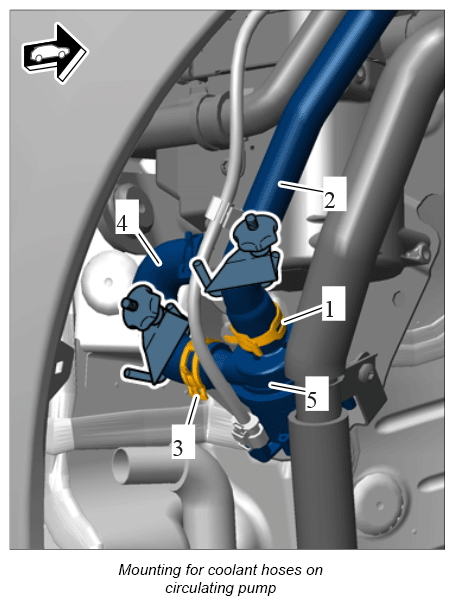

  2. Secure coolant hoses.
    G12837450Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Push coolant hoses -2-  and -4-  as far as they will go over the adapters.

      Tighten spring band clamps -1-  and -3-  using assembly pliers Nr.72 Pos.1  .

    2. 2.2. Hose clamp 3094  must then be removed from the coolant hoses -2-  and -4-  .

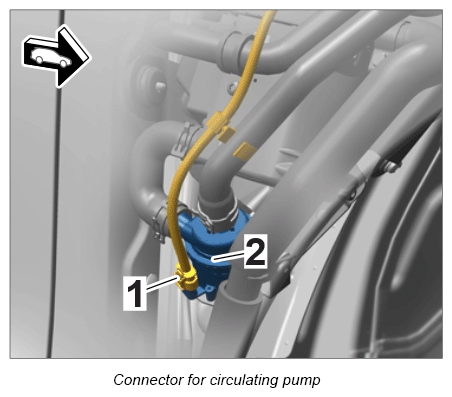

  3. Connect electric plug connection -1-  to the circulating pump -2-  until it engages securely.
G12837451Courtesy of PORSCHE CARS NORTH AMERICA, INC.
