Removing and installing exhaust pipe: Notes
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

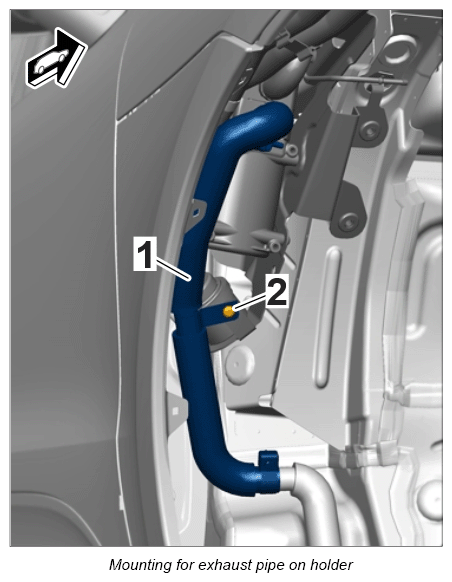

- Unscrew fastening screw -2-
on the exhaust pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

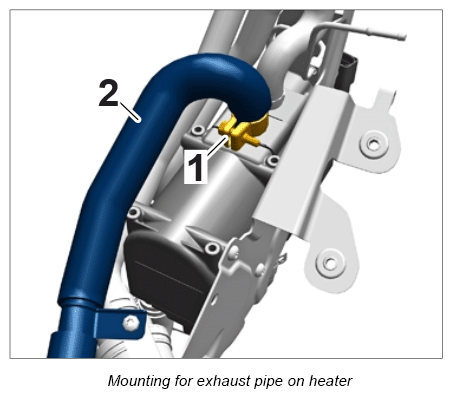

- Remove exhaust pipe from heater.
- 2.1 Loosen screw-type clamp -1-
.
- 2.2 Remove exhaust pipe -2-
from heater.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
