Installing exhaust pipe
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Fit exhaust pipe on heater.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

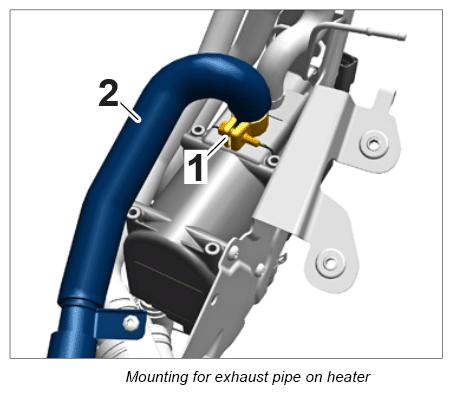

- 1.1. Position exhaust pipe -2-
on the heater.
- 1.2. Tighten screw-type clamp -1-
.

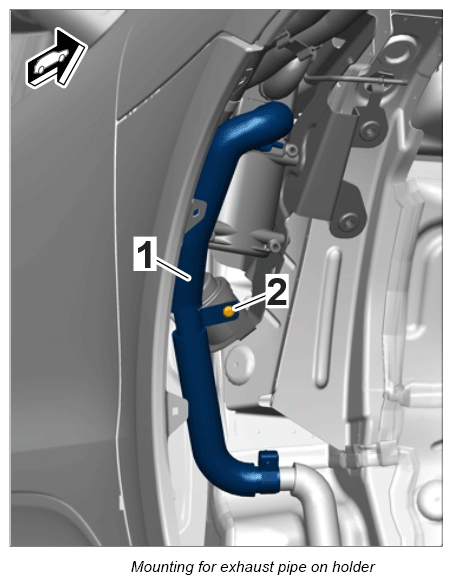

- Tighten fastening screw -2-
on the exhaust pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
