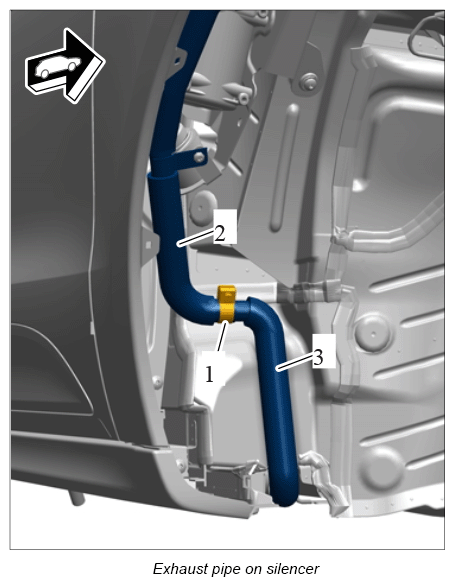

Loosen screw-type clamp -1-
.
Pull flexi-pipe -2-
off the silencer pipe -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

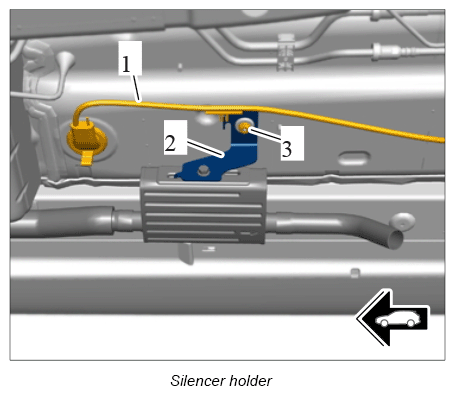

Disconnect line -1-
from the silencer holder -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

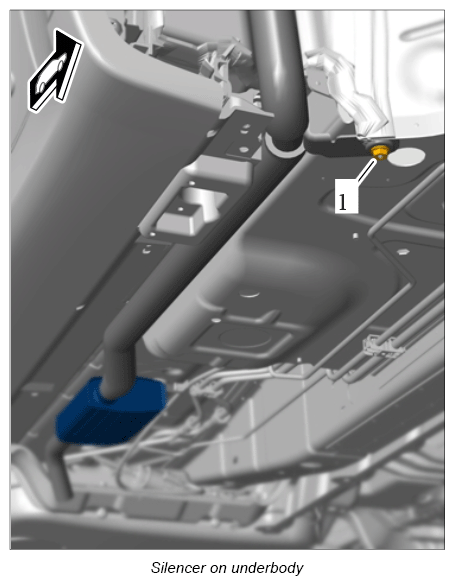

Unscrew and remove fastening nut -1-
at the bottom of the wheel housing.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

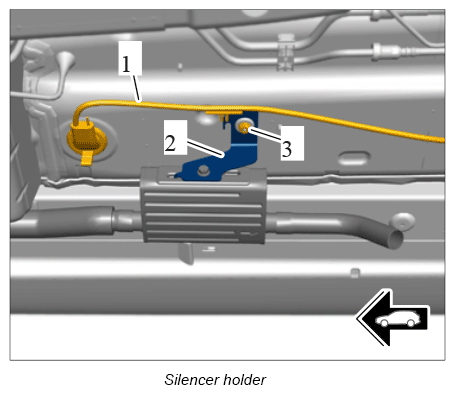

Unscrew and remove fastening nut -3-
on the silencer holder.
