Installing silencer

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Position silencer.

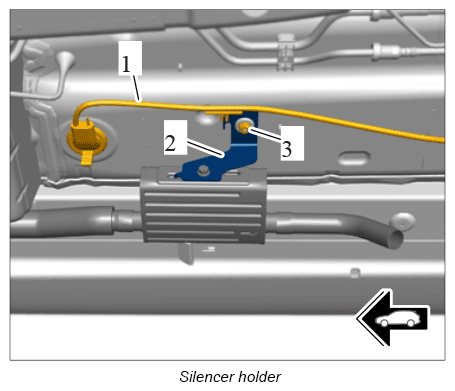

Tighten fastening nut -3- on the silencer holder to the prescribed tightening torque Tightening torque 9 Nm (6.5 ft. lb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

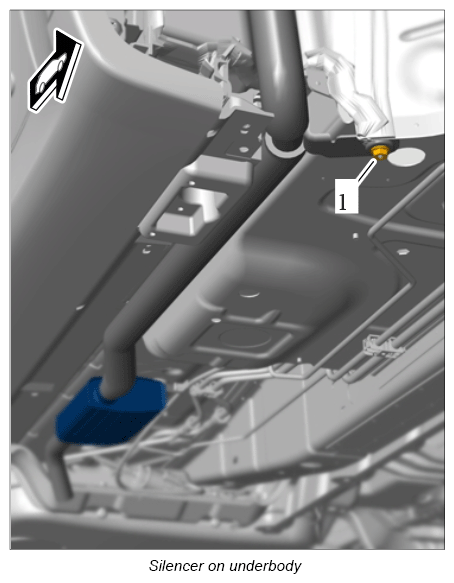

Tighten fastening nut -1- at the bottom of the wheel housing to the prescribed tightening torque Tightening torque 9 Nm (6.5 ft. lb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

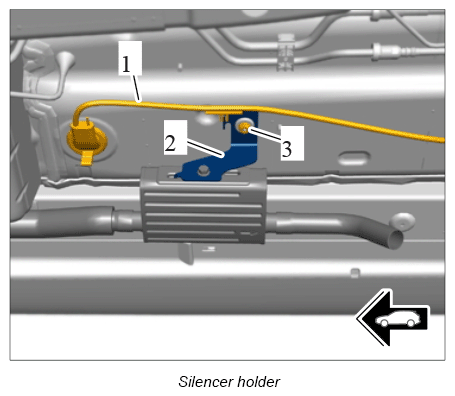

Secure line -1- to the silencer holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

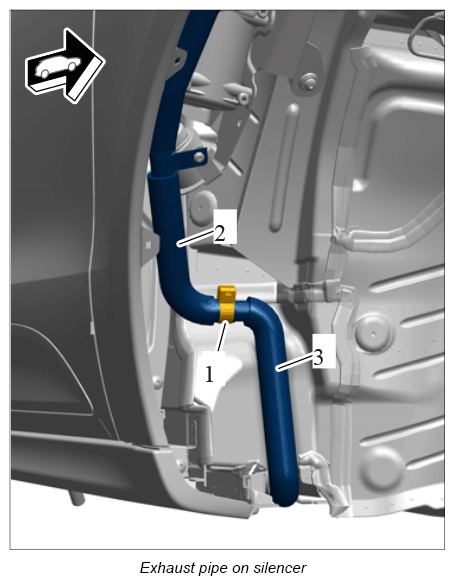

Slide flexi-pipe -2- onto the silencer pipe -3- .
Tighten screw-type clamp -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
