Removing fuel line - wheel housing connection to heater

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Emerging fuel

Risk of fire

→ Disconnect the battery.

→ Avoid contact with hot parts or sources of ignition.

→ Allow engine to cool down.

→ Relieve the fuel pressure before opening the fuel lines.

→ Collect emerging fuel, absorb it if necessary with a suitable binding material and dispose of properly.

→ Use suction to remove ignitable vapors.

→ Attach warning sign to vehicle in a clearly visible position.

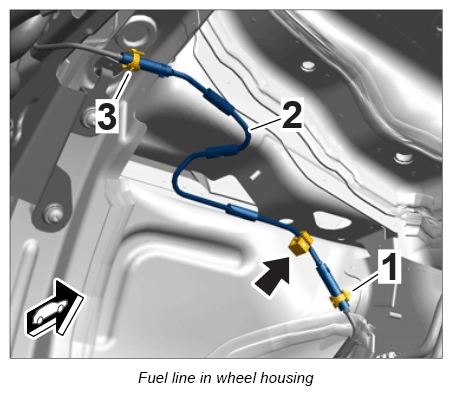

Unclip fuel line -2- in the wheel housing at the marked position -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen spring band clamp -3- using assembly pliers Nr.72 Pos.1 and disconnect fuel line -2- .
Loosen spring band clamp -1- using assembly pliers Nr.72 Pos.1 and disconnect fuel line -2- .
Remove fuel line.
