Removing and installing fuel pump for auxiliary heating: Notes
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Emerging fuel
- Risk of fire
→ Disconnect the battery.
→ Avoid contact with hot parts or sources of ignition.
→ Allow engine to cool down.
→ Relieve the fuel pressure before opening the fuel lines.
→ Collect emerging fuel, absorb it if necessary with a suitable binding material and dispose of properly.
→ Use suction to remove ignitable vapors.
→ Attach warning sign to vehicle in a clearly visible position.

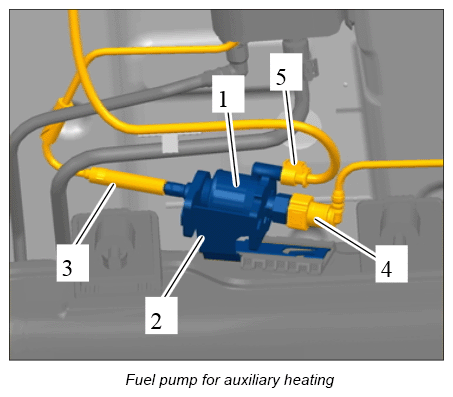

- Loosen fuel pump -1- from the holder -2- .
- Release and disconnect connector -5- .
- Disconnect line -3- for the auxiliary heating and pull it off the fuel pump.
- Disconnect fuel line -4- to the fuel tank.
- Remove fuel pump -1- .
